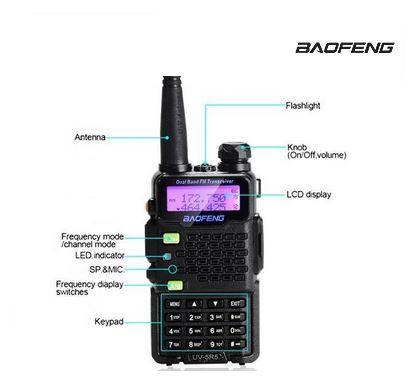

Two Way Radio Walkie-Talkie Dual-Band

General Specifications:

• Frequency Range:
• VHF: 136-174 MHz
• UHF: 400-520 MHz
• Channel Capacity: 128 Channels
• Frequency Step: 2.5/5/6.25/10/12.5/25 kHz
• Antenna: SMA-Female
• Antenna Impedance: 50 ohms
• Operating Voltage: DC 7.4V
• Battery: 1800mAh Li-ion Battery
• Battery Life: Approximately 12 hours (depending on usage)
• Dimensions: 110 x 58 x 32 mm (4.3 x 2.28 x 1.25 inches)
• Weight: 210 grams (7.4 ounces) including battery

Transmitter Specifications:

• Output Power: 4W / 1W (High / Low)
• Modulation Mode: 16kΦF3E / 11kΦF3E
• Maximum Deviation: ≤ 5 kHz (Wide) / ≤ 2.5 kHz (Narrow)
• Spurious Emission: ≤ -60 dB
• Adjacent Channel Selectivity: ≥ 65 dB (Wide) / ≥ 60 dB (Narrow)
• Frequency Stability: ± 2.5 ppm
• Antenna Gain: >2.15 dB
• Audio Distortion: ≤ 5%

Receiver Specifications:

• Sensitivity (12dB SINAD): ≤ 0.2 µV
• Intermodulation: ≥ 65 dB
• Adjacent Channel Selectivity: ≥ 65 dB (Wide) / ≥ 60 dB (Narrow)
• Spurious Response Rejection: ≥ 60 dB
• Audio Power Output: 1W
• Audio Distortion: ≤ 5%
• Blocking: ≥ 90 dB

Additional Features:

• Dual-Band Display: Dual-frequency display with selectable dual-band display
• Dual Standby: Allows monitoring of two frequencies at the same time
• Emergency Alarm: Built-in emergency alarm function
• FM Radio: 65-108 MHz
• LED Flashlight: Integrated LED flashlight
• CTCSS/DCS: 50 CTCSS and 104 DCS codes
• Tone Burst: 1750 Hz
• VOX Function: Voice-activated transmission
• PC Programmable: Can be programmed via a computer with optional programming cable
• Channel Step: 2.5/5/6.25/10/12.5/25 kHz
